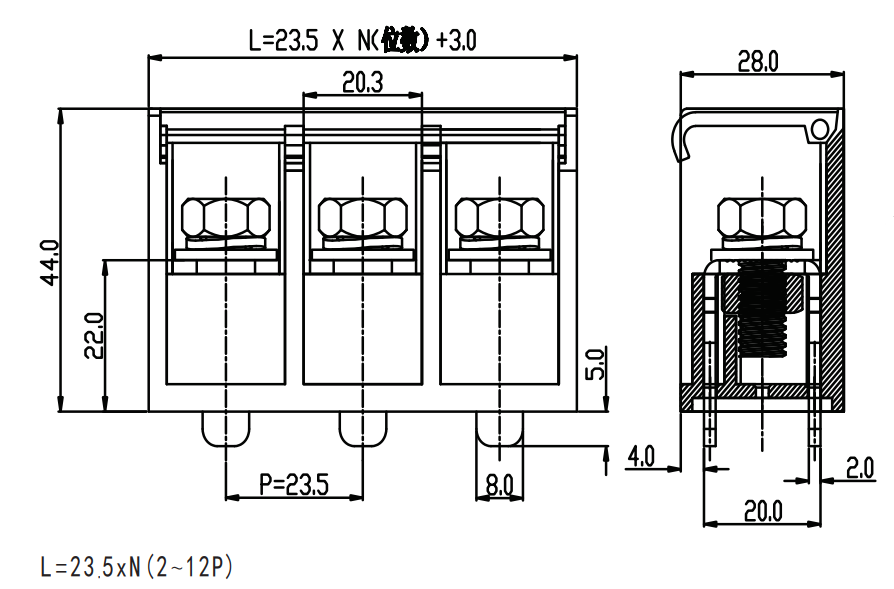

BA20-XX-23.5-13-C
栅栏式接线端子，标称电流：120A；额定电压（UL）：600V；间距：23.5mm；绝缘材料：PA66（UL94,V-0）；导体材质：BRASS，触点表面：锡；使用环境温度：-40℃～105℃ 。
UL技术参数
| 等级 | Use Group | B | C | D | |
| 额定电压 | Rated Voltage | [ V ] | 600 | 600 | 600 |
| 额定电流 | Rated Current | [ A ] | 120 | 120 | 5 |
| 耐 电 压 | Withstanding Voltage | [ V ] | AC 3000V/1Min | ||
IEC技术参数
| 过压类别 | Overvoltage Category | Ⅲ | Ⅲ | Ⅱ | |
| 污染等级 | Contamination Class | 3 | 2 | 2 | |
| 额定电压 | Rated Voltage | [ V ] | 630 | 800 | 800 |
| 额定电流 | Rated Current | [ A ] | 125 | 125 | 125 |
| 冲击电压 | Rate Impulse Voltage | [ KV ] | 8 | 8 | 6 |
一般参数
| 线径范围 | Wire Range | [AWG/mm² ] | 18~2 / 1.0~35 | ||
| 剥线长度 | Stripping length | [mm ] | / | ||
| 位数范围 | Poles | 02 ~ 12P | |||
| 工作温度 | Operating temperature | [ ℃ ] | -40 ～ +105 | ||
| 螺丝扭矩 | Screw torque(Max) | [ lbf.in ] | M8 / 40 | ||
| 环保要求 | RoHS Compliant | YES | |||
