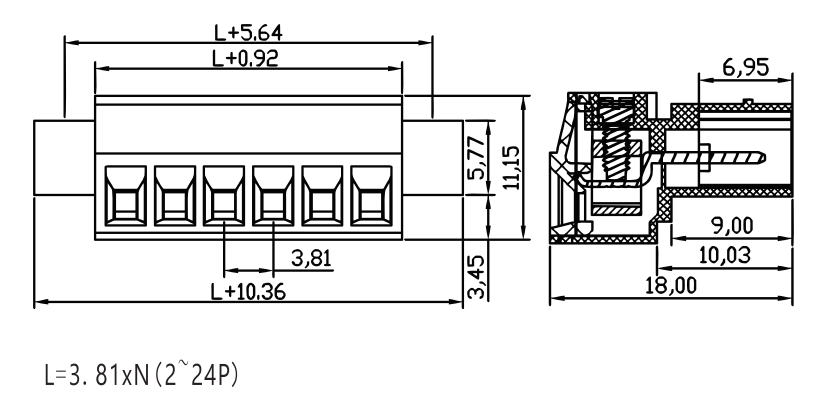

PL1.5B-XX-3.81-06B
插拔式端子，标称电流：8A；额定电压（UL）：300V；间距：3.81mm；绝缘材料：PA66（UL94,V-0）；导体材质：BRASS，触点表面：锡；使用环境温度：-40℃～105℃
UL技术参数
| 等级 | Use Group | B | C | D | |
| 额定电压 | Rated Voltage | [ V ] | 300 | / | 300 |
| 额定电流 | Rated Current | [ A ] | 8 | / | 8 |
| 耐 电 压 | Withstanding Voltage | [ V ] | AC 1600V/1Min | ||
IEC技术参数
| 过压类别 | Overvoltage Category | Ⅲ | Ⅲ | Ⅱ | |
| 污染等级 | Contamination Class | 3 | 2 | 2 | |
| 额定电压 | Rated Voltage | [ V ] | / | 160 | 320 |
| 额定电流 | Rated Current | [ A ] | / | 8 | 8 |
| 冲击电压 | Rate Impulse Voltage | [ KV ] | / | 2.5 | 2.5 |
一般参数
| 线径范围 | Wire Range | [AWG/mm² ] | 28~16 / 0.2~1.5 | ||
| 剥线长度 | Stripping length | [mm ] | 8 ~ 10 | ||
| 位数范围 | Poles | 02 ~ 24P | |||
| 工作温度 | Operating temperature | [ ℃ ] | -40 ～ +105 | ||
| 螺丝扭矩 | Screw torque(Max) | [ lbf.in ] | M2/2|M2.5/2 | ||
| 环保要求 | RoHS Compliant | YES | |||
