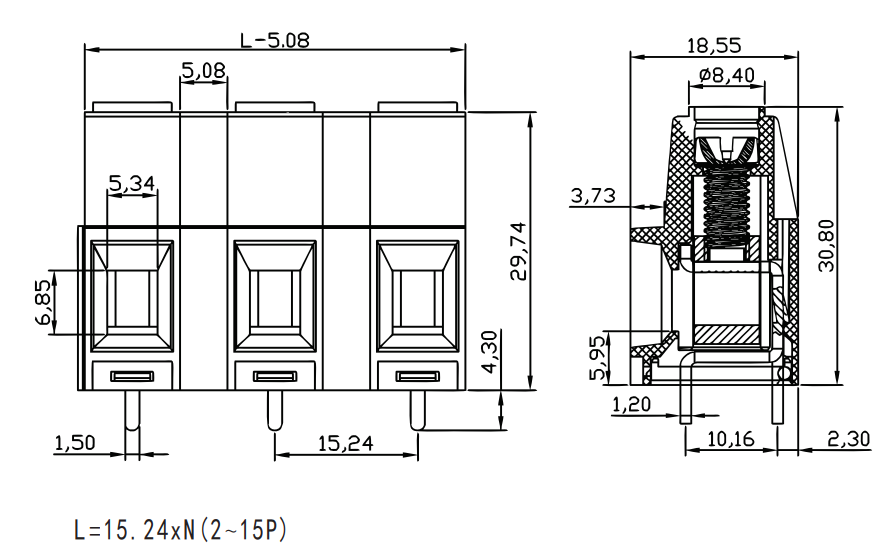

EU25-XX-15.24-02
欧式接线端子，标称电流：57A；额定电压（III/3）：600V；间距：15.24mm；绝缘材料：PA66（UL94,V-0）；导体材质：BRASS，触点表面：锡；使用环境温度：-40℃～105℃
UL技术参数
| 等级 | Use Group | B | C | D | |
| 额定电压 | Rated Voltage | [ V ] | 300 | - | 300 |
| 额定电流 | Rated Current | [ A ] | 20 | - | 10 |
| 耐 电 压 | Withstanding Voltage | [ V ] | AC 1600V/1Min | ||
IEC技术参数
| 过压类别 | Overvoltage Category | Ⅲ | Ⅲ | Ⅱ | |
| 污染等级 | Contamination Class | 3 | 2 | 2 | |
| 额定电压 | Rated Voltage | [ V ] | 500 | 630 | 1000 |
| 额定电流 | Rated Current | [ A ] | 20 | 20 | 20 |
| 冲击电压 | Rate Impulse Voltage | [ KV ] | 4 | 4 | 4 |
一般参数
| 线径范围 | Wire Range | [AWG/mm² ] | 24~12 / 0.5~2.5 | ||
| 剥线长度 | Stripping length | [mm ] | 10 ~ 11 | ||
| 位数范围 | Poles | 02 ~ 24P | |||
| 工作温度 | Operating temperature | [ ℃ ] | -40 ～ +105 | ||
| 螺丝扭矩 | Screw torque(Max) | [ N.m ] | / | ||
| 环保要求 | RoHS Compliant | YES | |||
