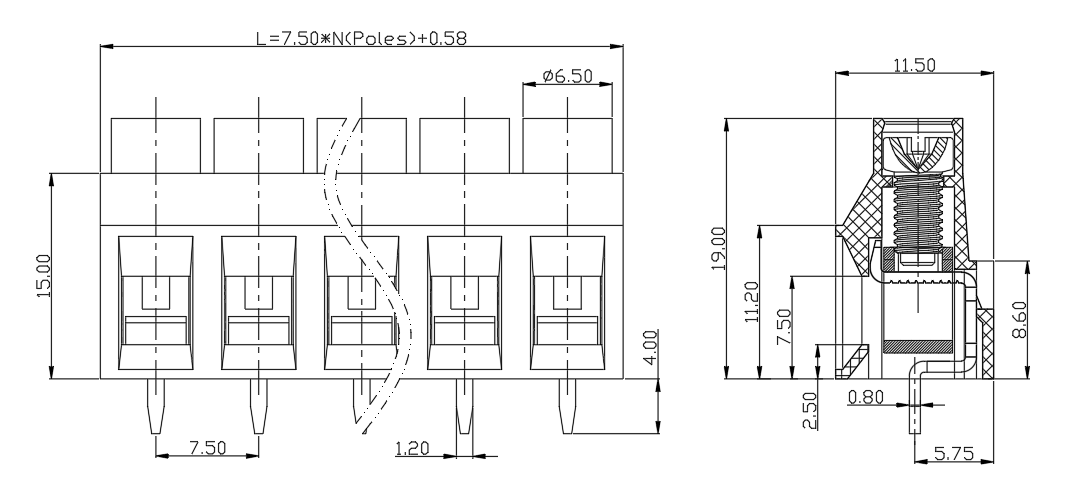

EU5-XX-7.50-02
欧式接线端子，标称电流：30A；额定电压（UL）：300V；间距：7.50mm；绝缘材料：PA66（UL94-V0）；导体材质：BRASS，触点表面：锡；使用环境温度：-40℃～105℃
UL技术参数
| 等级 | Use Group | B | C | D | |
| 额定电压 | Rated Voltage | [ V ] | 300 | 300 | 300 |
| 额定电流 | Rated Current | [ A ] | 30 | 30 | 10 |
| 耐 电 压 | Withstanding Voltage | [ V ] | AC 2500V/1Min | ||
IEC技术参数
| 过压类别 | Overvoltage Category | Ⅲ | Ⅲ | Ⅱ | |
| 污染等级 | Contamination Class | 3 | 2 | 2 | |
| 额定电压 | Rated Voltage | [ V ] | 500 | 630 | 1000 |
| 额定电流 | Rated Current | [ A ] | 32 | 32 | 32 |
| 冲击电压 | Rate Impulse Voltage | [ KV ] | 6 | 6 | 6 |
一般参数
| 线径范围 | Wire Range | [AWG/mm² ] | 30~10 / 0.2~5.0 | ||
| 剥线长度 | Stripping length | [mm ] | 7 ~ 8 | ||
| 位数范围 | Poles | 02 ~ 24P | |||
| 工作温度 | Operating temperature | [ ℃ ] | -40 ～ +105 | ||
| 螺丝扭矩 | Screw/Torque (Max) | [ lbf.in] | M3.5/10 | ||
| 环保要求 | RoHS Compliant | YES | |||
